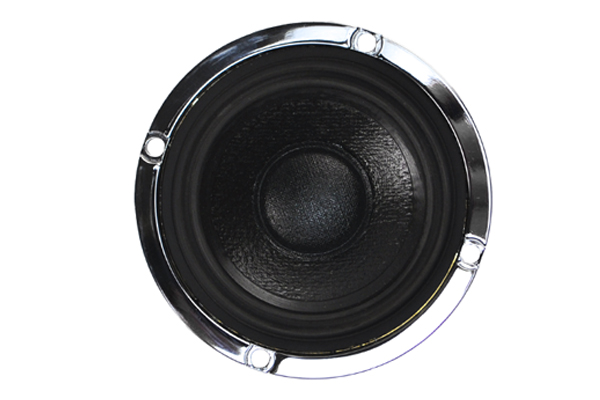

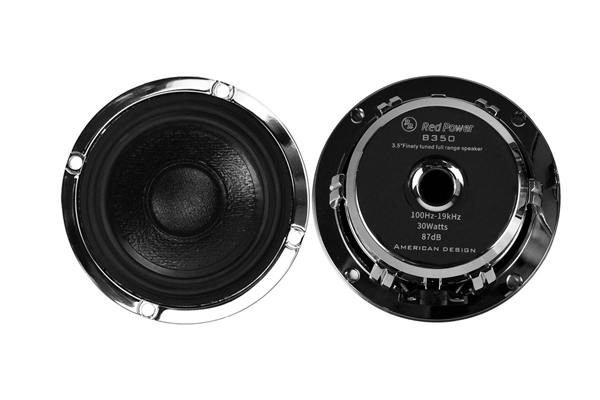

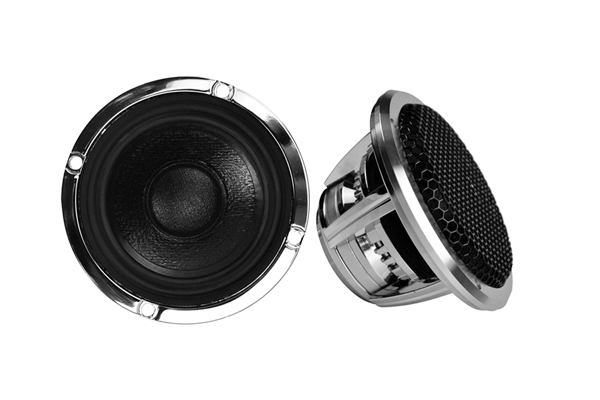

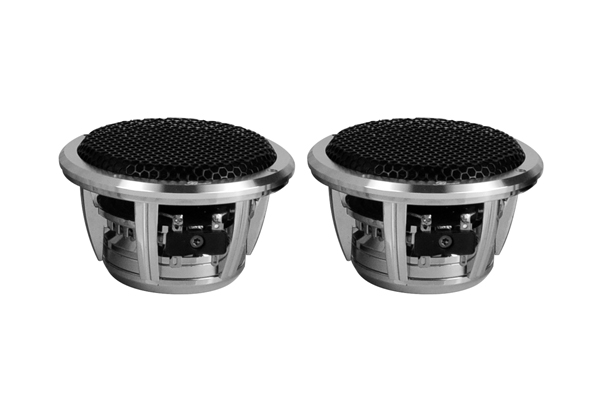

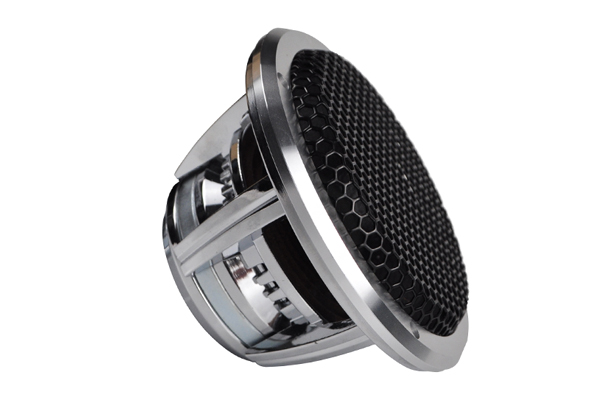

3.5寸全頻喇叭
Detail Introduction:Material of Speaker------------------------Paper PulpNominal
Detail Introduction:
Material of Speaker------------------------Paper Pulp
Nominal Impedance-------------------------------8ohm

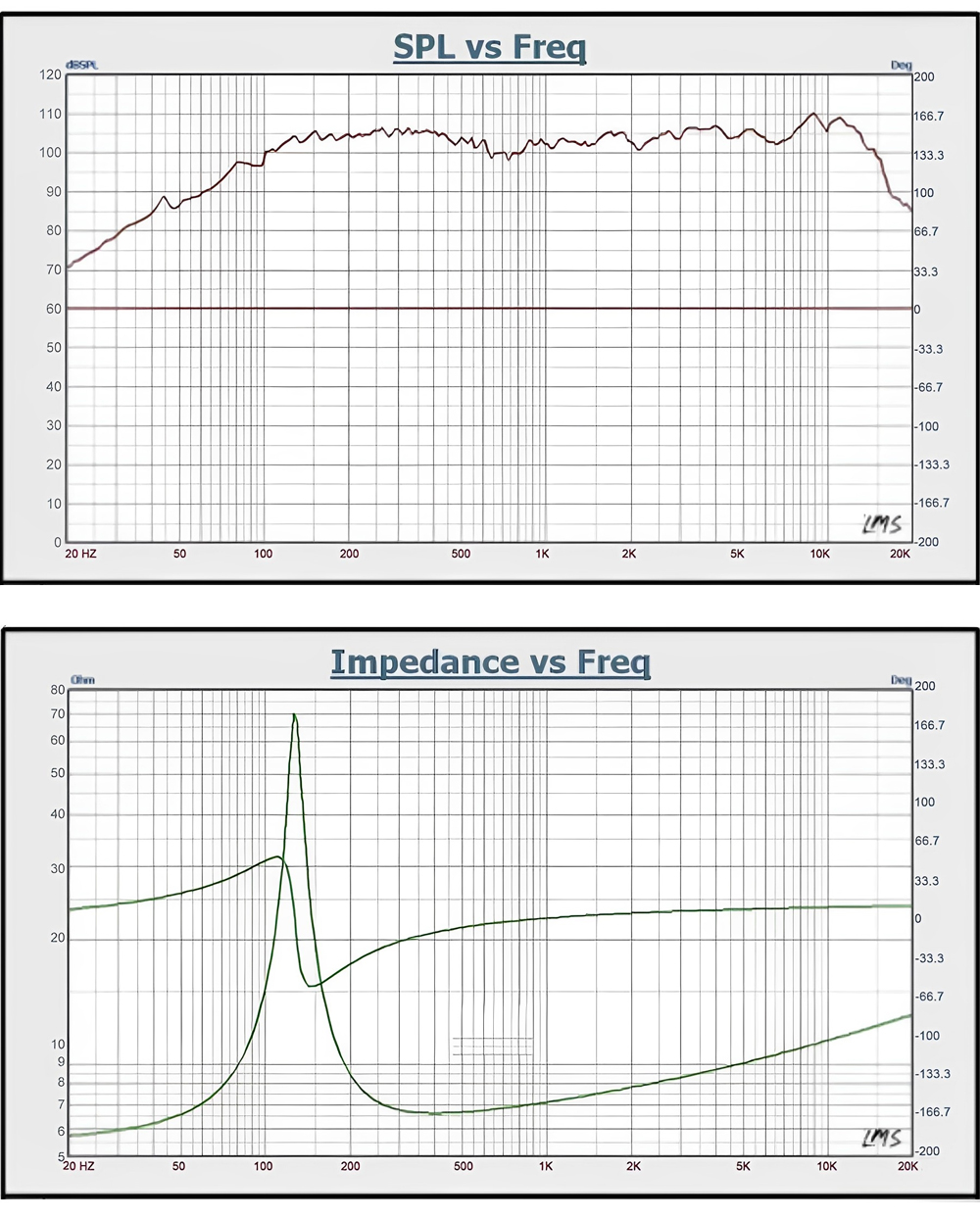

Recommended Frequency Range----100Hz-19kHz
Short Term Power Handling----------------------30W
Long Term Power Handling---------------------100W
Sensitivity 2.83V/m--------------------------------87dB
Voice Coil Diameter----------------------------25.5mm
Voice Coil Height---------------------------------12mm
DC Resistance of Voice Coil Re--------------5.6ohm
Voice Coil Inductance @1kHz Le-----------1.08 mH
Force Factor BI-------------------------------4.654 T-M
Free Air Resonance Fo--------------------------127Hz
Mechanical Q Factor Qms----------------------11.105
Electrical Q Factor Qes---------------------------1.053
Total Q Factor Qts---------------------------------0.962
Reference Efficiency No-----------------------0.108%
Mms------------------------------------------------3.896g
